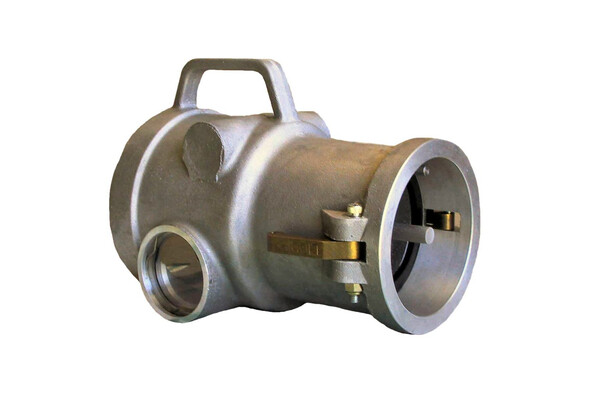

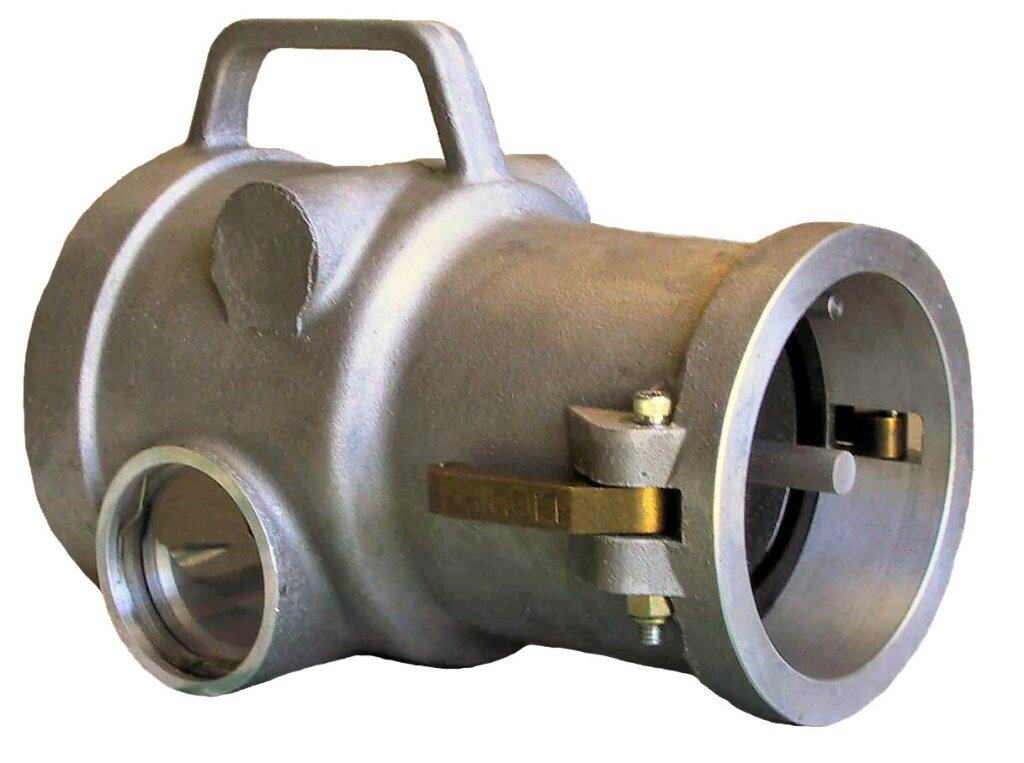

Vapour Coupler - VCF500
Vapour couplers allow for vapour transfer between tanker trucks and loading/unloading tanks.
Liquip's vapour couplers automatically open when connected to a compatible vapour adaptor and automatically seal when disconnected.
Liquip offers a 100mm (4") with poppet and spigot that can be used for vapour transfer between the tank truck and loading/unloading tank.
The VCF500 is a spring loaded coupler that automatically opens when coupled to a compatible adaptor.
Features & Benefits
- Will operate at flow rates up to 10,000 litres per minute at 20oC (4 compartments loading each at 2,500 LPM).
- Low pressure drop.
- Unique hinged poppet design provides lower pressure drops than standard poppets at high flows rates.
- Spring loaded poppet retains vapours until coupled to the male vapour adaptor.
- Universal 4" (100mm) camlock connection.
- Automatically seals when disconnected for increased operator safety.
- Patented “dunny lid” poppet to minimum pressure drop across the valve.
- Moulded lip seal for reliable sealing.
- Fitted with a sightglass to view any product left from condensation.
- Incorporates a carry handle for manoeuvrability.
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
|
VCF500 | 4" Vapour Coupler with Dunny Lid. Spigot and blind flange. (Not to AS:5602 and therefore not suitable for use in Australia). |
